[aadl-modeling]: IMV Viewer

[Luciana Burgareli]

Hello,

The IMV Viewer shows very similar shades of red when we select the "show
errors" option. What is the meaning of the different shades? Are they
related to the levels of fault effect?

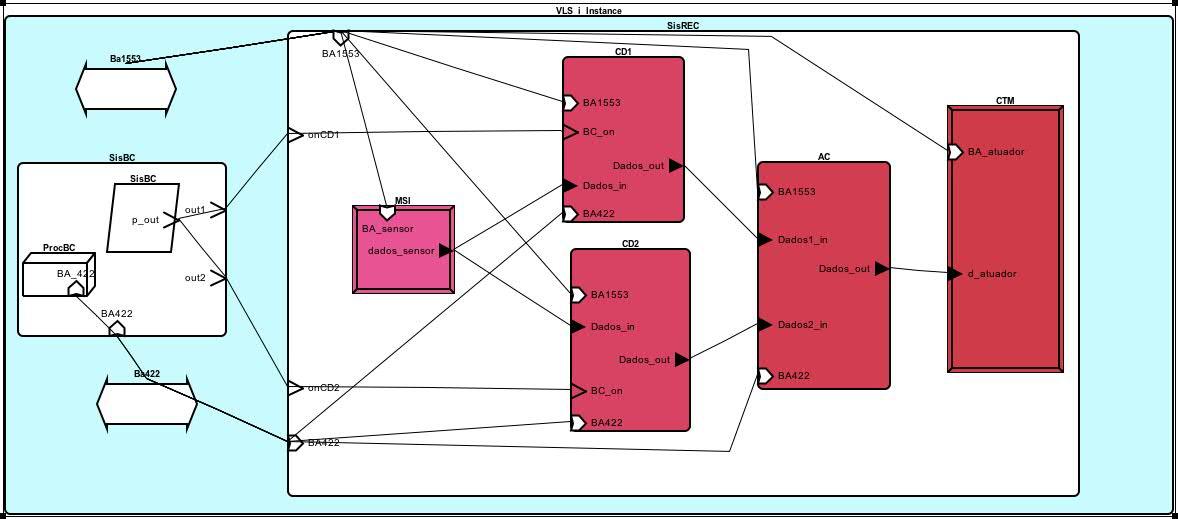

In our model, we selected the MSI componenent. We think that there are 4
shades of red in the IMV viewer:
- shade 1: MSI component selected
- shade 2: CD1 and CD2 in the first level effect
- shade 3: AC in the second level effect
- shade 4: CTM in the third level effect

Best regards,
Luciana, Nanci and Rovedy
