[aadl]: The flow implementation in Osate 2.0.8

[Zhibin Yang]

Dear Profs. Lewis Bruce, Peter Feiler, Julien Delange, and Jerome  HUGUES,

When we define a flow implementation, we find that the "flows" term must be
defined before the "properties" term, otherwise, the Osate tool says "Not
allowed: flows".

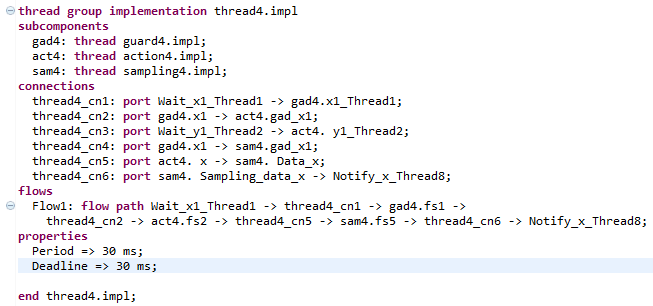

1. the correct one
[image: Inline image 2]

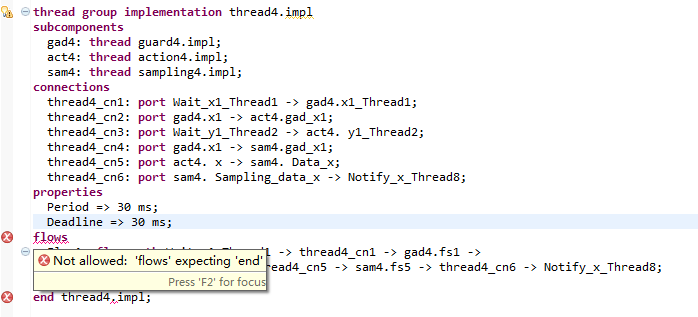

2: the incorrect one
[image: Inline image 1]

The tool is Osate 2.0.8. Actually, it is not a problem, but may be (a
little) not so friendly.

Thanks a lot.

Zhibin Yang
with Mamoun, and Jean Paul

IRIT
