[aadl]: The flow implementation in Osate 2.0.8

[Zhibin Yang]

Dear Prof. Peter Feiler,

Ok, thanks a lot.

Zhibin Yang


On Thu, Dec 11, 2014 at 4:19 PM, Peter Feiler <phf at sei.cmu.edu> wrote:

>  The tool just enforces what the standard says.
>
> The standard currently requires the different sections of a component type
> or implementation to be in a fixed order.
>
> We can consider relaxing this rule in the standard in the next revision or
> as an errata.
>
>
>
> Peter
>
>
>
> *From:* Zhibin Yang [mailto:zhibinyang168 at gmail.com]
> *Sent:* Thursday, December 11, 2014 10:01 AM
> *To:* Lewis, Bruce CIV (US); Peter Feiler; Julien Delange;
> Jerome.HUGUES at isae.fr; sae-aadl-users at lists.sei.cmu.edu
> *Subject:* The flow implementation in Osate 2.0.8
>
>
>
> Dear Profs. Lewis Bruce, Peter Feiler, Julien Delange, and Jerome  HUGUES,
>
>
>
> When we define a flow implementation, we find that the "flows" term must
> be defined before the "properties" term, otherwise, the Osate tool says
> "Not allowed: flows".
>
>
>

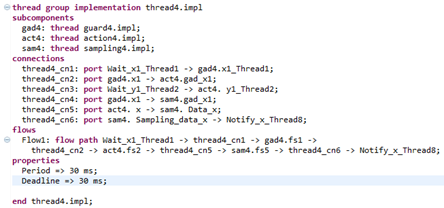

> 1. the correct one
>
> [image: Inline image 2]
>
>
>

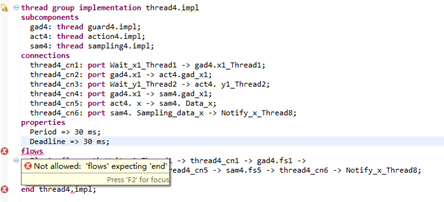

> 2: the incorrect one
>
> [image: Inline image 1]
>
>
>
> The tool is Osate 2.0.8. Actually, it is not a problem, but may be (a
> little) not so friendly.
>
>
>
> Thanks a lot.
>
>
>
> Zhibin Yang
>
> with Mamoun, and Jean Paul
>
>
>
> IRIT
>
>
>
>
>
