[aadl]: Understanding some XML tags

[Lutz Wrage]

Vijay,

The cross references are stored in Xtext format. How do you convert the aadl file to XML?

- Lutz
From: sae-aadl-users-bounces+lwrage=sei.cmu.edu at lists.sei.cmu.edu [mailto:sae-aadl-users-bounces+lwrage=sei.cmu.edu at lists.sei.cmu.edu] On Behalf Of Singh, Vijay Bahadur
Sent: Friday, September 16, 2016 9:59 AM
To: sae-aadl-users at lists.sei.cmu.edu
Subject: [aadl]: Understanding some XML tags

Hello All,

Hope everything is going great!

I am trying to use and import the AADL model for further post processing.
For that I am converting the AADL model to aaxl format and then importing and mapping each items -

Can someone help me understand what the circled area in XML file means? I can understand that this indicates the component coming from other package.
But how to make sense of it and link it to the extended component? The number does not say anything.

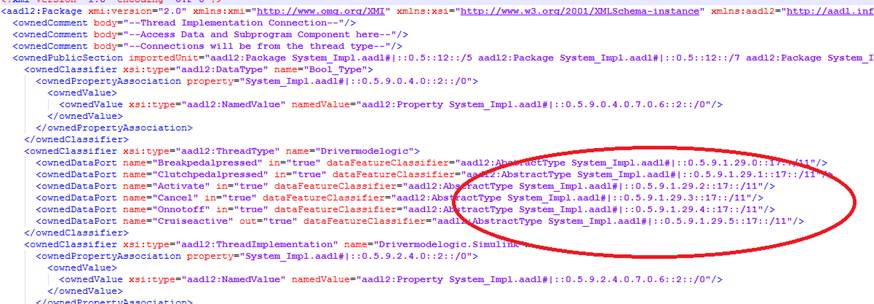

[cid:image001.jpg at 01D21012.0195B590]

Thank you very much in advance!

Kind Regards,
Vijay

--
Vijay Bahadur Singh
Application Engineer - MBSE Solutions,

Siemens Industry Software
Digital Factory Division
Product Lifecycle Management
Simulation and Test Solutions

mailto:bahadur.singh at siemens.com
www.siemens.com/plm/lms<http://www.siemens.com/plm/lms>
