[aadl-modeling]: EMV2 Annex

[David K]

The FTA works fine now with your help. Thank you for this.
Now I want to do a latency analysis of the model. My question is how do I
get the data from the subcomponents of a system (connected via port
connections) e.g. "device1" to the subcomponents of the system "device3"
with the architecture of the image below.

As far as I tried I can't allocate multiple datatypes to one port interface
and I can't use the flow mechanism to connections. The examples I use for
my research doens't contain such cases. They all use just one system with
it's subcomponents. Neither of them handles the communication between two
systems and their subcomponents via busses. For the FTA it was sufficient
to change the "bus accesses" into ports and then allocate them to the bus.
This works fine but I suppose this wasn't the coorect way to do it.


Thanks in advance
David

[image: image.png]


Am Fr., 15. Juni 2018 um 15:19 Uhr schrieb Peter Feiler <phf at sei.cmu.edu>:

> Hi David,
>
>
>
> Devices have logical interfaces (ports, data access) and physical
> interfaces (bus access).
>
>
>
> You can associate error propagations with all these features.
>
>
>
> EMV2 interprets all connections (port, data access, bus access) as
> propagation as well as along bindings – as stated in the EMV2 annex
> standard.
>
>
>
> Fault tree analysis interprets all of these propagation path if they are
> present.
>
>
>
> As you evolve your system you may first have a logical model and do the
> FTA only on port connections.
>
> Then you may do a physical model and do an FTA on it.
>
> Finally you add bindings  - in your case the binding of the connection
> between devices to the bus – the resulting FTA on it now shows the
> interactions between the logical and physical layers.
>
>
>
> BTW you can use abstract components to model functional architectures.
>
>
>
> Check out
> https://github.com/osate/examples/blob/master/SafetyTutorial/readme.md
>
> The material is also in the OSATE help under Error Model Annex
> Documentation (aka Safety Analysis).
>
>
>
> Peter
>
>
>
> *From:* aadl-modeling-bounces+phf=sei.cmu.edu at lists.sei.cmu.edu [mailto:
> aadl-modeling-bounces+phf=sei.cmu.edu at lists.sei.cmu.edu] *On Behalf Of *David
> K
> *Sent:* Thursday, June 14, 2018 10:22 AM
> *To:* AADL Modeling <aadl-modeling at lists.sei.cmu.edu>
> *Subject:* [aadl-modeling]: EMV2 Annex
>
>
>
> Good afternoon,
>
>
>
> I'm currently trying to model a "Fault Tree Analysis" which is working in

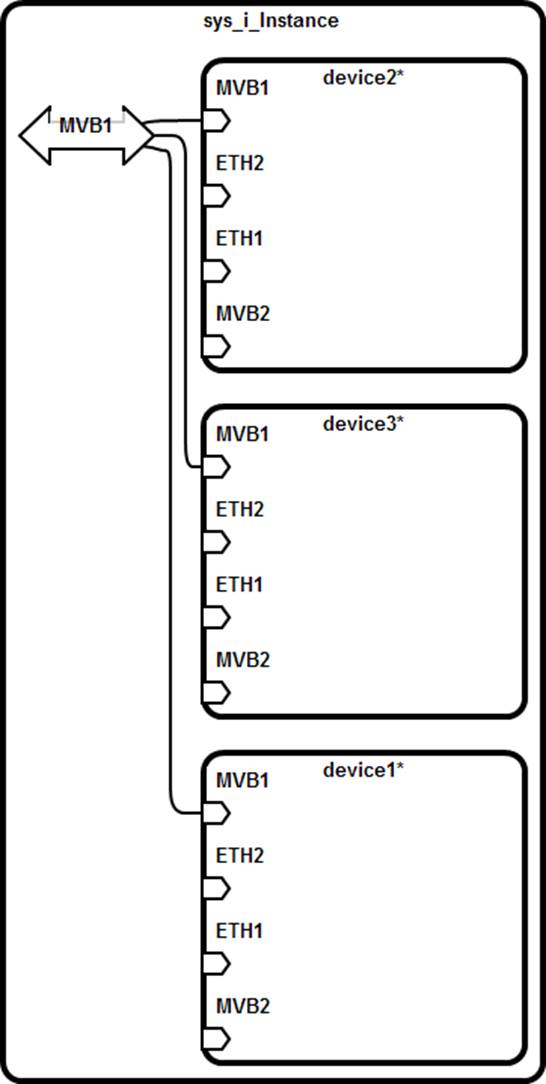

> it's basic functionality. Now I want to extend it. Before I' describe my
> problem some basic informations about my system. The image below shows a
> simplified version of my system. My issue is about modelling the individual
> communication between the hardware-systems. E.g. device1 has an specific
> error which only influences device2. device3 has the same error but is only
> influenced by device2. They all communicate over the bus "MVB1". Now my
> problem is how to model this case. I thought about modelling indivudal
> connections via port connections but they are used for software-components
> as far as I know. All resources I read about EMV2 modelling mainly use
> ports so it's hard for me to transfer this to bus accesses. I hope someone
> can give me some hints how to model this case.
>
>
>
> Kind regards
>
> David
>
> [image: Unbenannt1.PNG]
>
>
>
